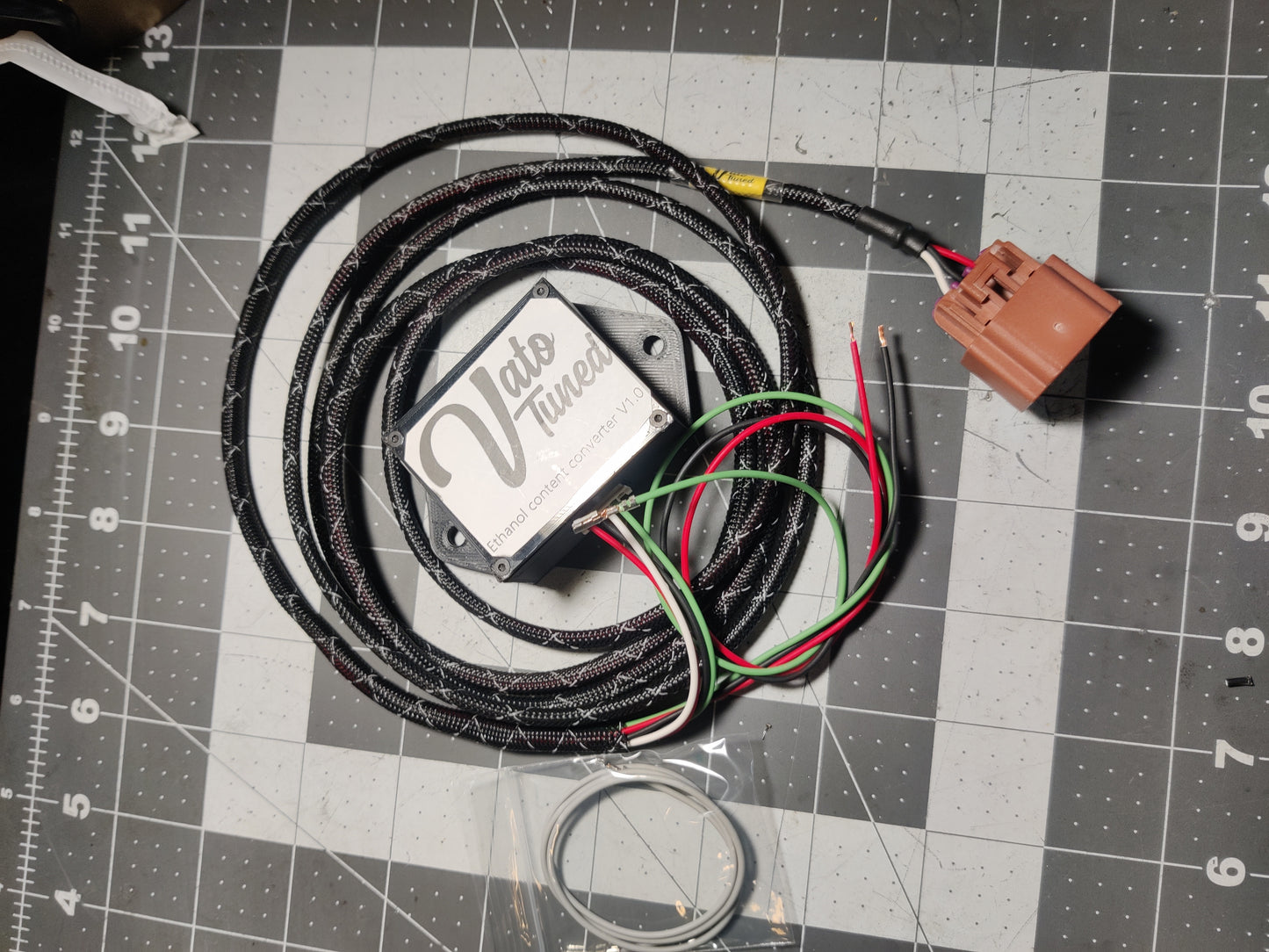

Vato Tuned Ethanol Content Converter v1.0

From £24.00

Overview

Reads the frequency and pulse-width signal from a flex-fuel ethanol content sensor and converts it to a steady voltage for ethanol content and fuel temperature. Use it with an ECU that can't read the flex-fuel signal natively, or with an aftermarket gauge to show ethanol percentage.

Fits

  • Honda OBD1, S2000 and Nissan OBD1 ECUs, and other ECUs without native flex-fuel support
  • GM-style flex-fuel ethanol content sensors

The ethanol content sensor isn't included. The full ethanol and fuel temperature tables are in the install guide.

Options

  • With or without a case
  • With or without the plug-and-play Honda OBD1 harness. The harness is wired for the GM flex-fuel sensor, ends in a Honda OBD1 ECU pin and is wrapped in fire-retardant expandable sleeve. Connect it to any free analog input.

Specifications

ItemValue
Part numberVT-ECC-01
Ethanol output, V1.00.50 to 4.00 V for 0 to 100 %, linear
Ethanol output, V2.00.50 to 4.50 V for 0 to 100 %, linear
Contaminated fuel reading4.09 V on V1.0, 4.75 V on V2.0
Warranty2 years
