P/N VT-DASH7A
Vato Tuned Dash-7
£264.00
- Display
- 7 in touch screen, 800 × 480
- Data
- CAN bus from any aftermarket ECU, or OBD2
- Shows
- 8 gauges, 3 large readouts and a tachometer, 4 switch inputs with warning icons
- Notes
- Set up in a web browser over the dash's own Wi-Fi. No laptop, app or software to install.
NOTE
For off-road and race use only.

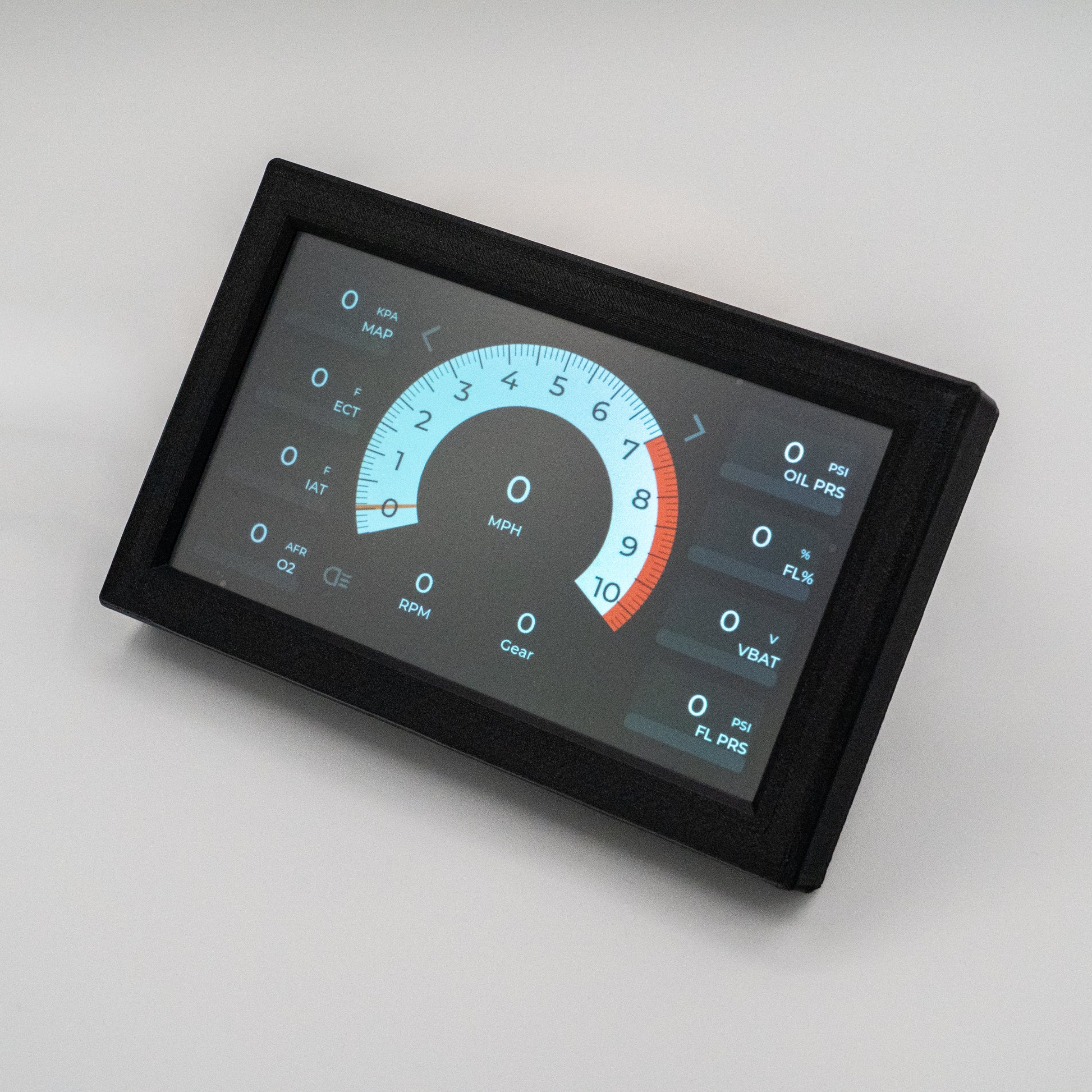

Dash overview
A programmable 7 in digital dash. It reads your ECU over CAN bus, or the car over OBD2, and shows every channel as gauges, large readouts and warning lights.
Set it up from your phone or laptop. The dash makes its own Wi-Fi network and serves a setup page, so there is nothing to install. Load your DBC file or TunerStudio INI file and pick channels from a list.
- DBC and INI import pick signals from a list, with no byte offsets or bit positions to work out
- Built-in CAN keypad 6 touch buttons that switch fans, pumps or lights over CANopen or J1939
- Alarms a high or low limit on any gauge, shown in red and sounded on the buzzer
- Your own look colours, start-up logo, background image and plain-language labels
Features
Display
- 8 gauge widgets and 3 large numeric readouts
- Arc, bar and full-gauge tachometer layouts with an adjustable redline
- Your own label, units and decimal places on every gauge
- Gear position shown as N or R, not a number
- Automatic night dimming from a headlight input
- Trip meter and odometer, miles or kilometres
Data and control
- CAN bus, set up to work with any aftermarket ECU
- OBD2
- DBC file and TunerStudio INI import
- 6-button CAN keypad over CANopen or J1939, lit by the receiving module's state
- 4 switch inputs for oil pressure, brake, high beam or turn signals
- Configuration export and restore
- Over-the-air firmware updates
Specifications
| Display | |
|---|---|
| Screen size | 7 in |
| Resolution | 800 × 480 |
| Touch screen | Yes |
| Gauges | 8 widgets + 3 large readouts |
| Tachometer layouts | Arc, bar, full gauge |
| Inputs and outputs | |
| Switch inputs | 4 |
| Buzzer | Built in, adjustable pulse rate |
| CAN keypad | 6 buttons, CANopen or J1939 |
| Communication | |
| Data sources | CAN bus (DBC or INI), OBD2 |
| CAN bitrate | All standard CAN bitrates |
| Setup | Web browser over the dash's own Wi-Fi |
| Electrical | |
| Supply voltage | 8 to 18 V |
| Current draw | 2 A maximum |
| Mechanical | |
| Dimensions | TBD |
| Mounting | TBD |
| Weight | TBD |
| Ordering | |
| Kit contents | TBD |
| Warranty | TBD |
TBD Not published yet. These rows fill in from the datasheet before release.
Resources
- Quick start guidePDFComing soon
- CAN and channel referencePDFComing soon
- FirmwareBINComing soon
