P/N VTHPNP

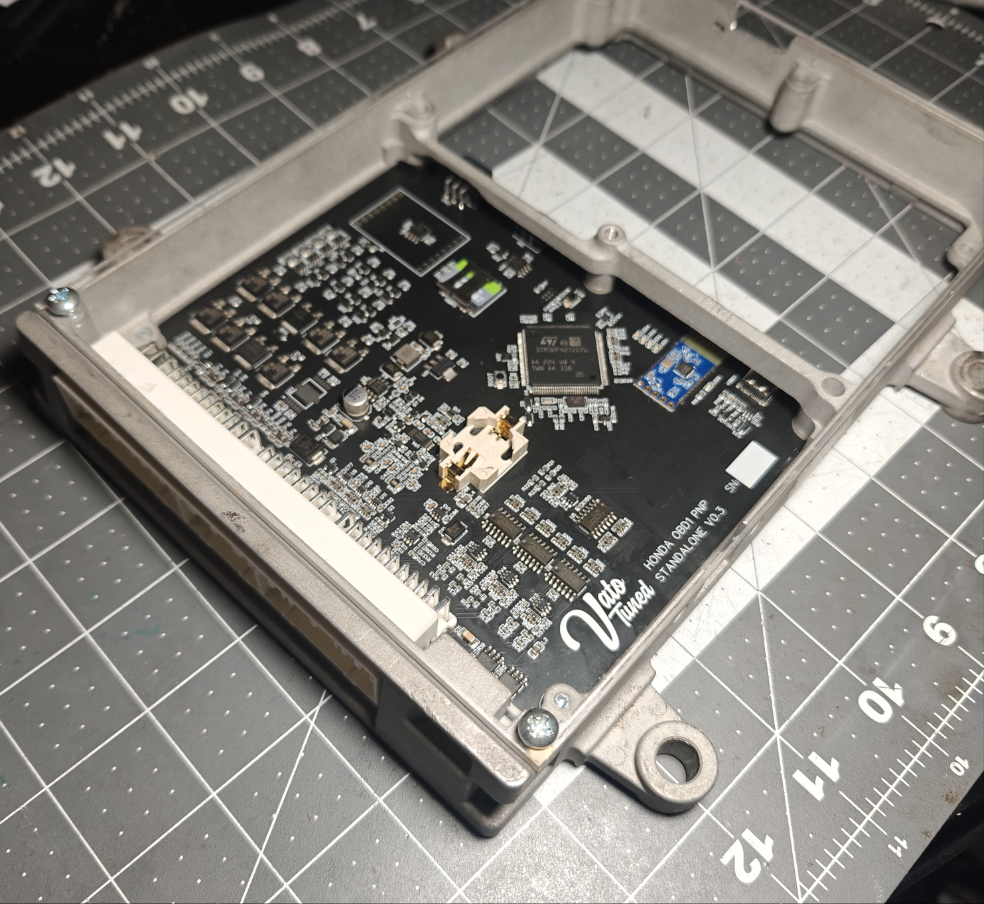

Vato Tuned Honda OBD1 PnP Standalone ECU

From 25,536.00TL
Outputs
20: 4 coil drivers, 14 low side, 2 high side, electronic throttle
Inputs
24: 6 digital, 2 trigger, 15 analog, 1 knock
Suits
Honda and Acura with an OBD1 ECU, such as a P28. Plugs into the factory harness.
Includes
ECU, USB cable, 2-pin CAN bus cable, 5 spare ECU header pins
Notes
A/C and dash keep working. Wideband, Wi-Fi and drive-by-wire are options below.

NOTE

For off-road and race use only.

ECU overview

A fully programmable replacement for the factory Honda OBD1 ECU. It plugs straight into the stock engine harness, so there is no rewiring and nothing to cut. The original A/C system and dash keep working.

Tune it in TunerStudio over USB-C, or wirelessly with the Wi-Fi option. The TunerStudio INI file is stored on the ECU, so TunerStudio finds it when you plug in. Logs record to the onboard micro SD card.

It fits the stock USDM OBD1 Civic and Integra ECU case. Firmware updates use FOME console, which comes in the firmware bundle.

  • 20 outputs including 4 coil-on-plug drivers and a full-bridge drive for electronic throttle
  • 24 inputs including 2 trigger inputs for the factory distributor or an aftermarket trigger
  • CAN bus for OBD2 and aftermarket gauges
  • Onboard barometric sensor, SD logging and optional LSU 4.9 wideband
Honda OBD1 ECU header, connectors A, B and D, terminal side
ECU connectorTerminal side, viewed from the harness. Pin 1 top left, odd pins on the top row. Before you order, check that your factory ECU has these three connectors.
