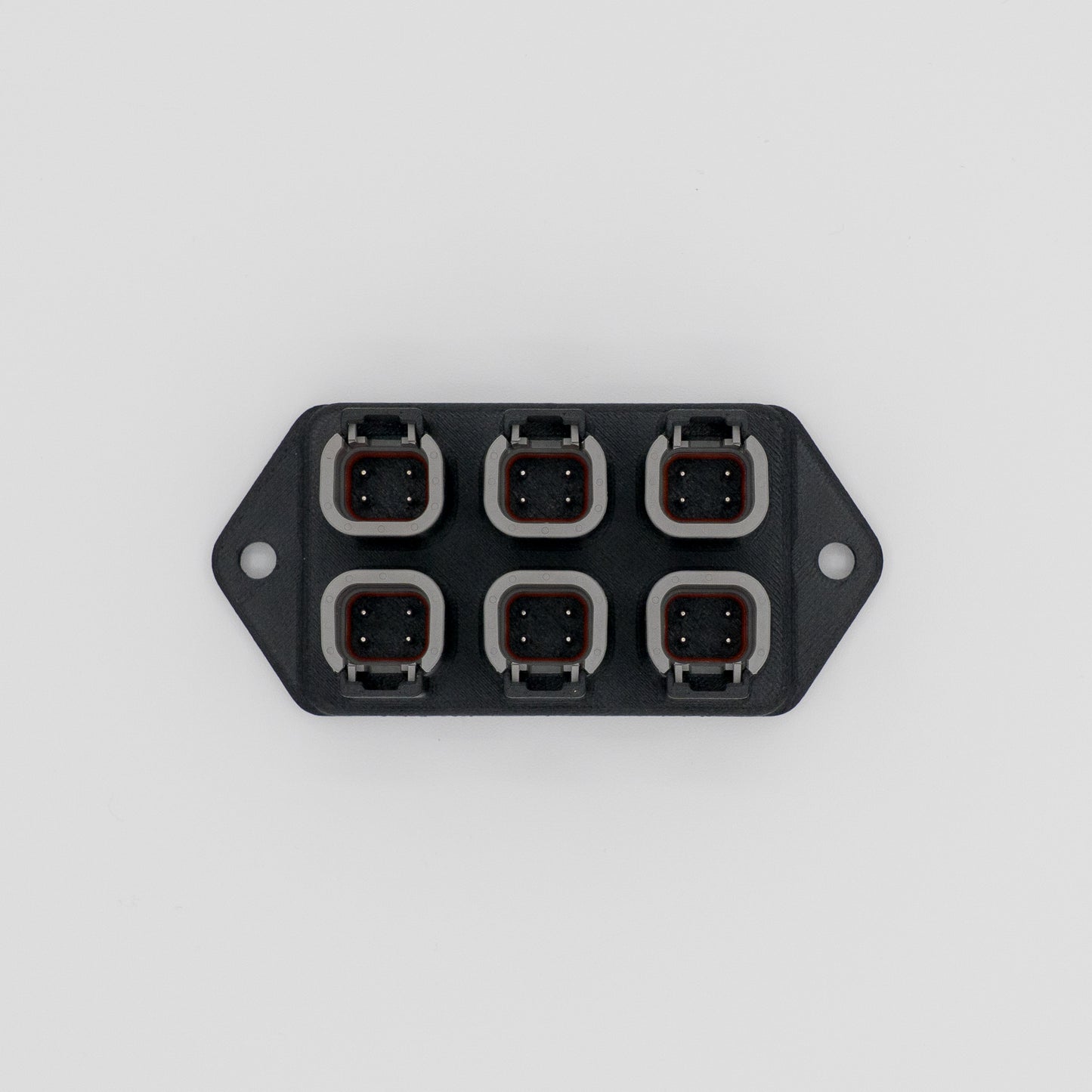

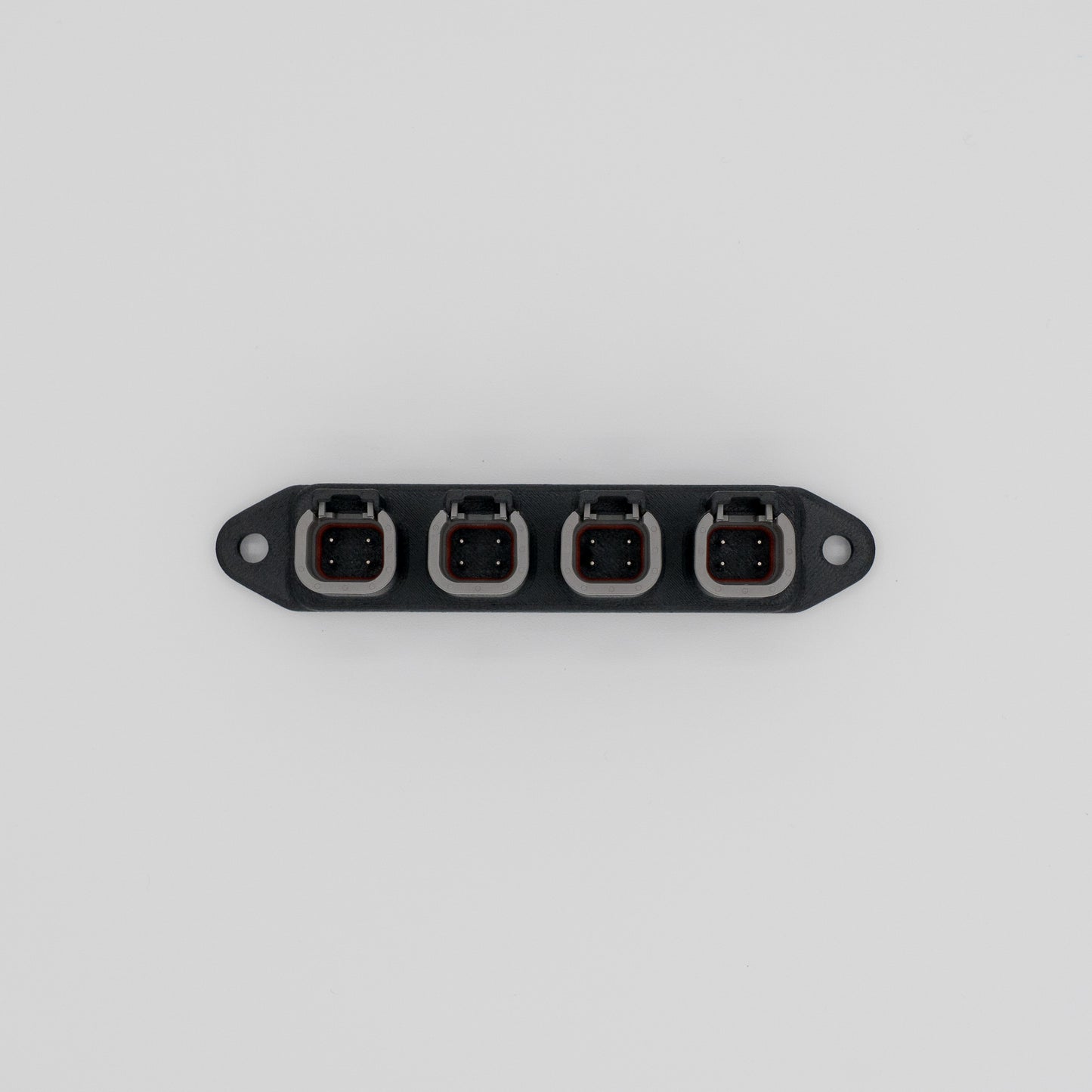

Vato Tuned CAN-Hub

From $60.00

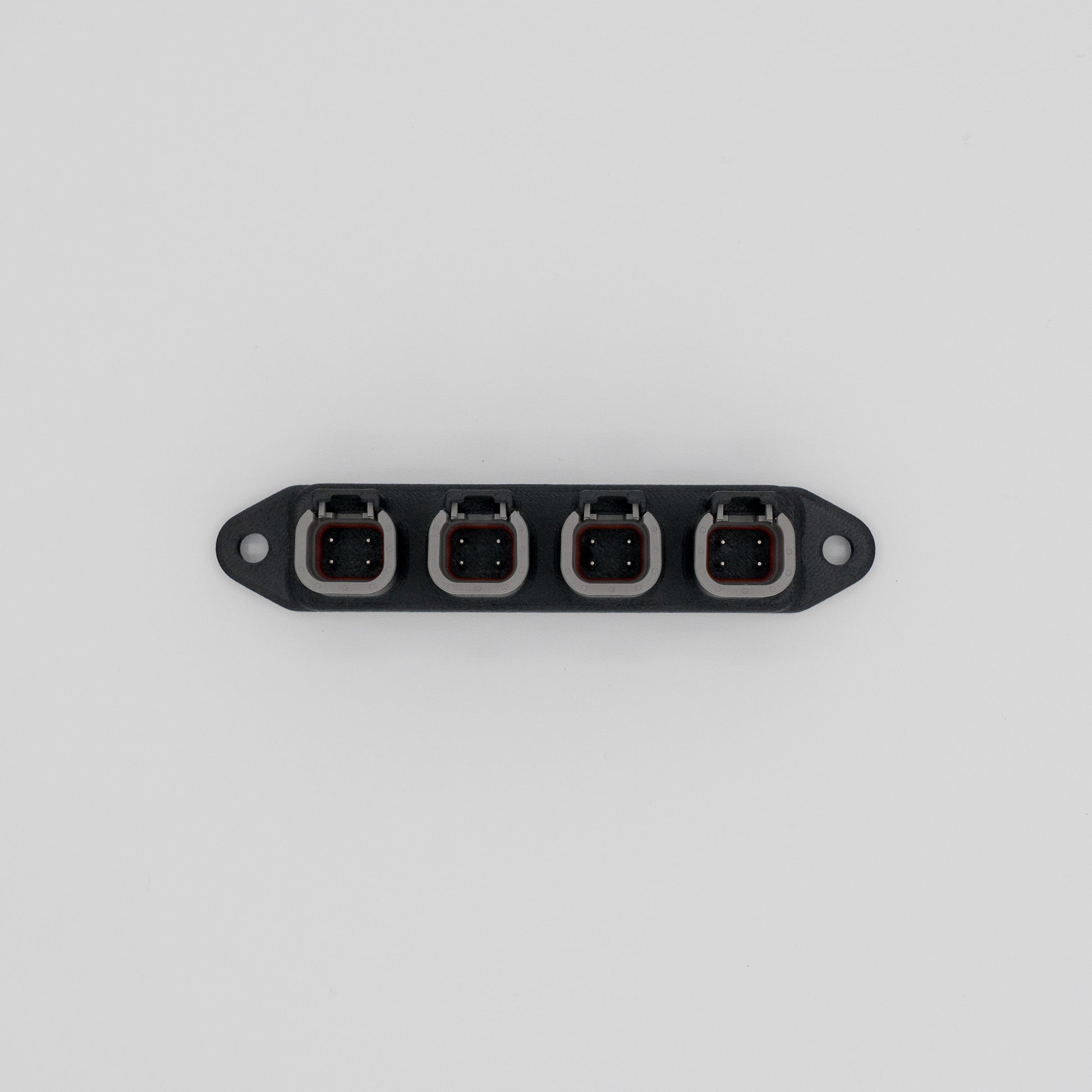

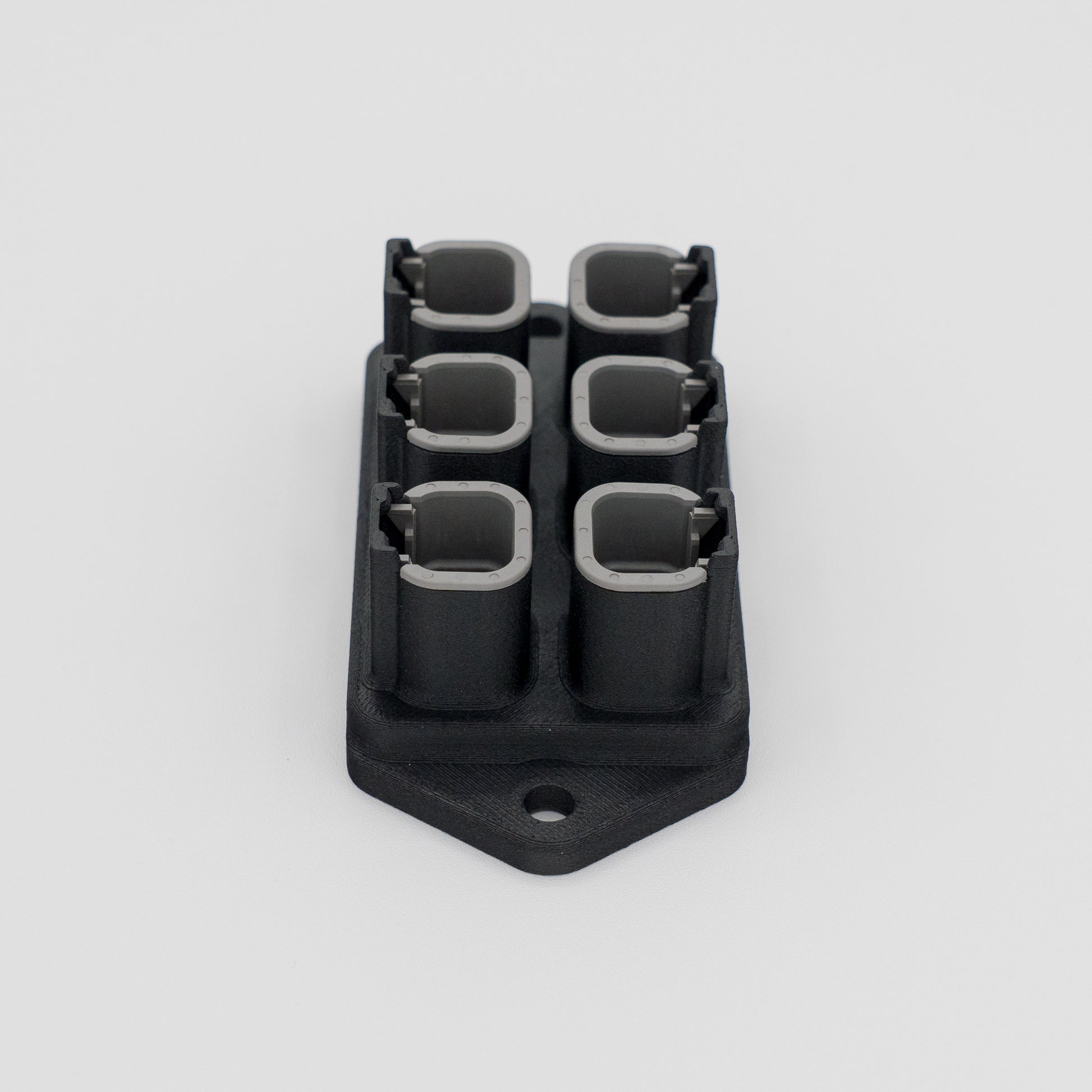

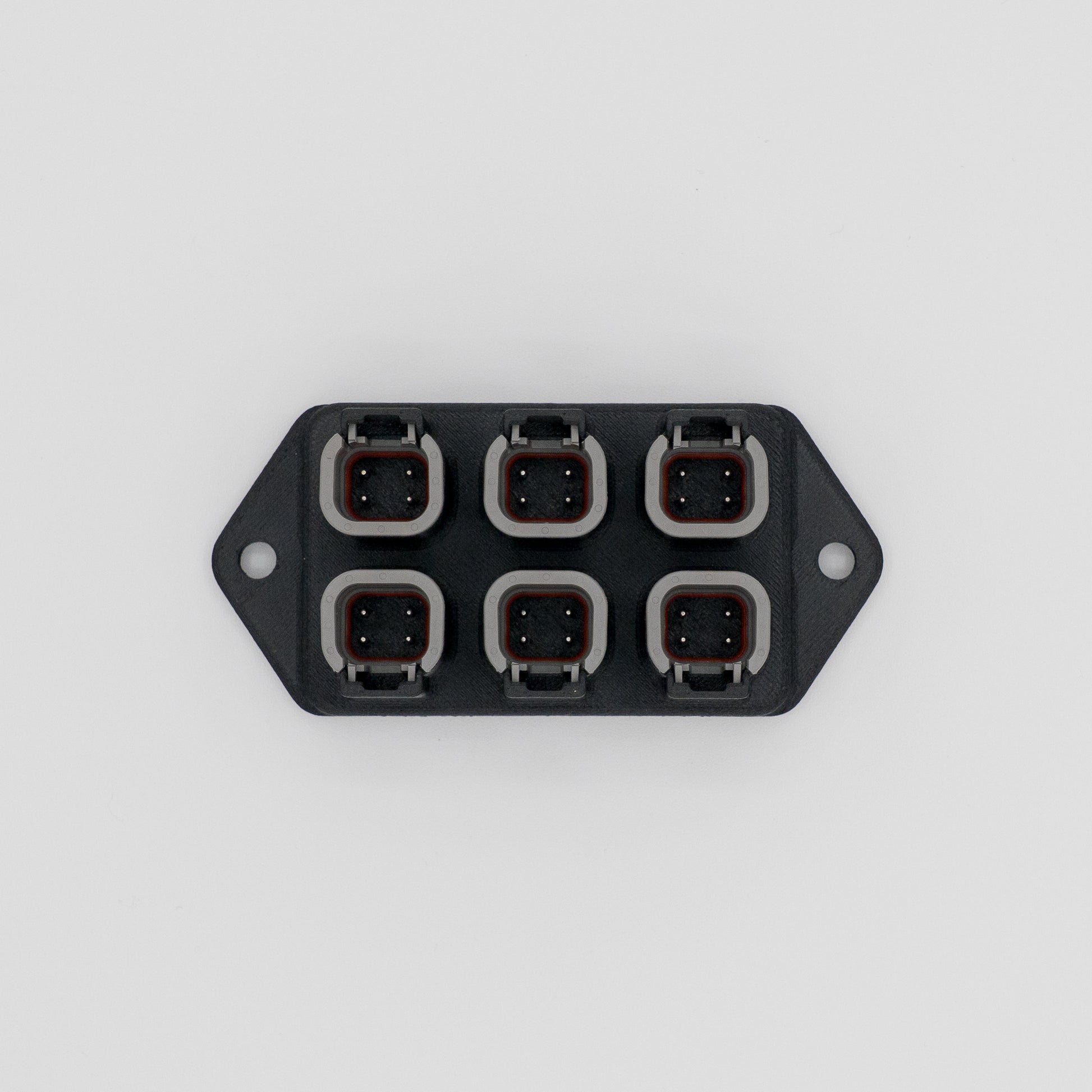

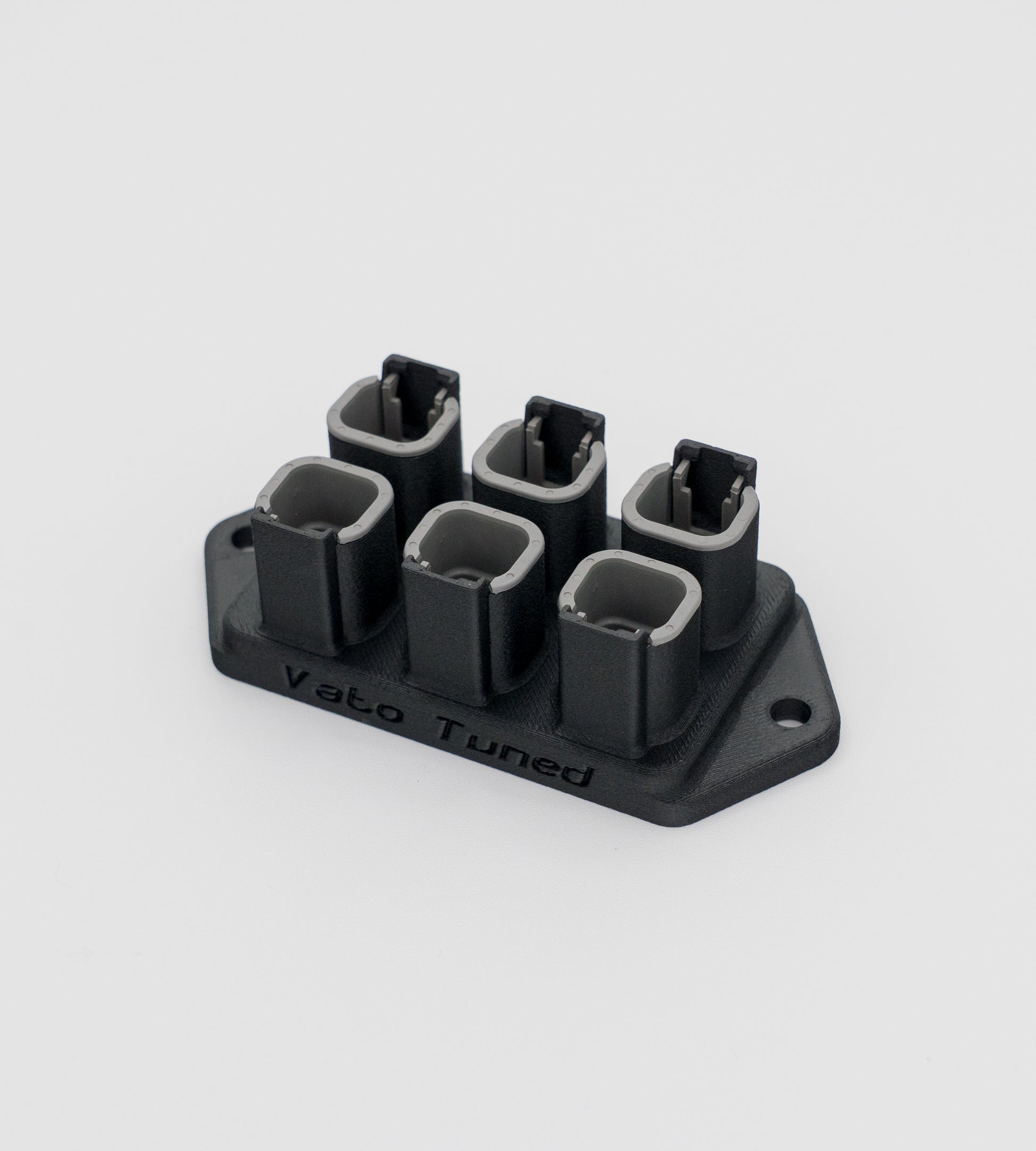

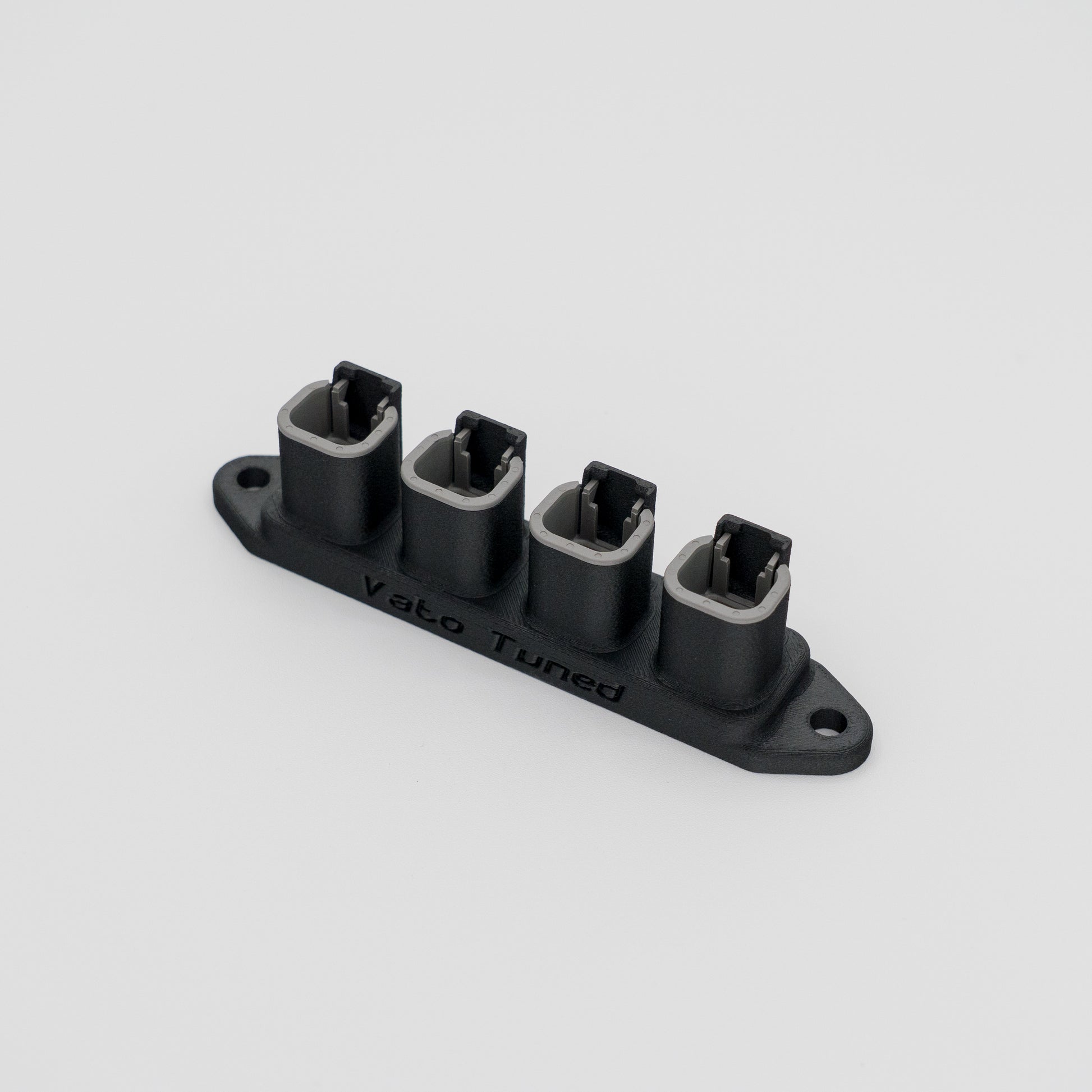

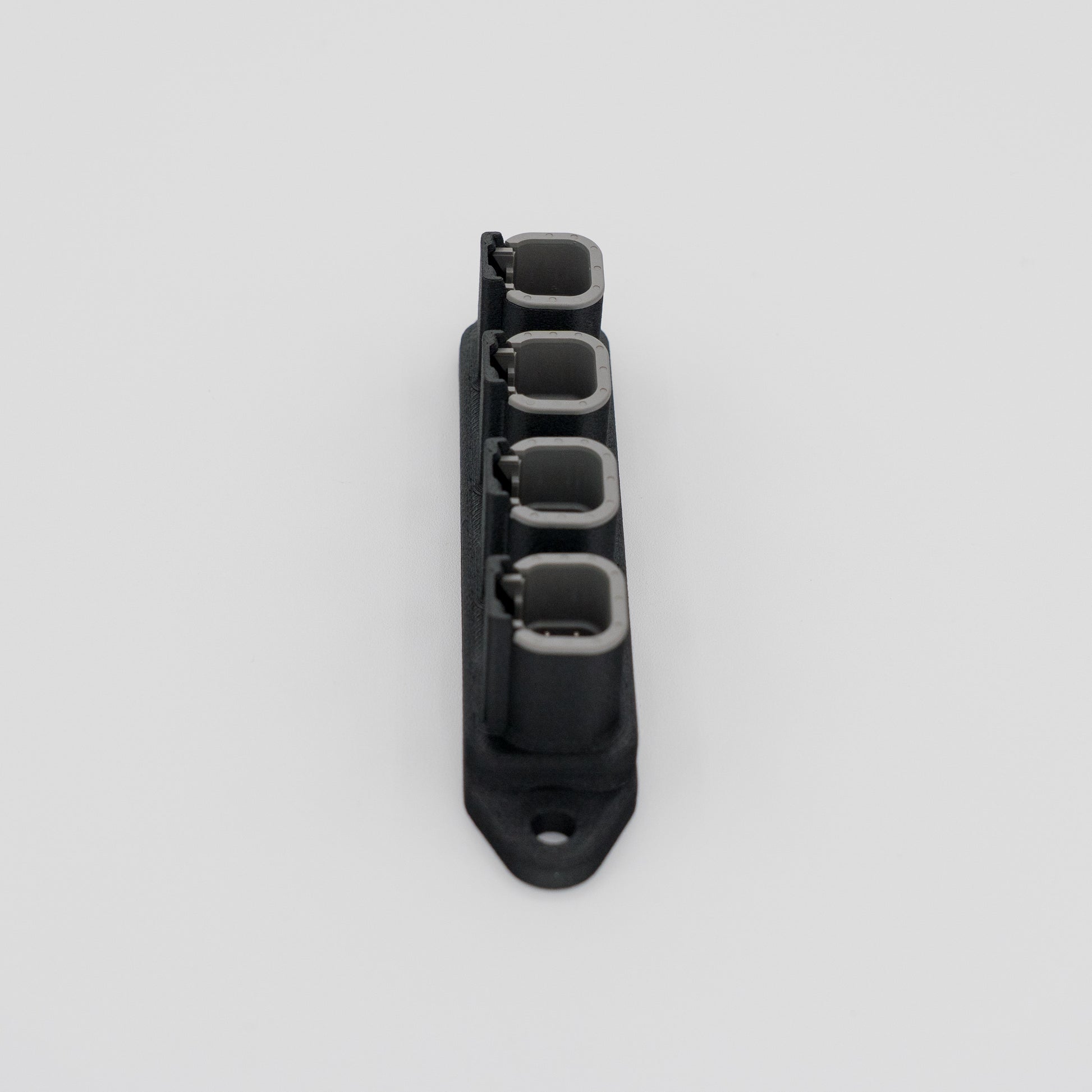

Ports: 4 (1 × 4 layout) or 6 (2 × 3 layout)
Plugs: Deutsch DTM 4-pin (DTM04-4P) on every port
Suits: Any CAN bus: the PnP ECU, CAN-Pod, Dash-7 and other CAN devices
Size: 130 × 25 × 32 mm (1 × 4) or 108 × 50 × 32 mm (2 × 3)

Hub overview

A passive hub that brings several CAN bus connections to one tidy point. Plug your ECU, gauges, dash and other CAN devices into one hub instead of splicing them into the bus.

Every port uses a sealed Deutsch DTM 4-pin connector, so devices plug in with standard, weatherproof connections.

4 or 6 ports choose the 1 × 4 or 2 × 3 layout
Deutsch DTM 4-pin sealed, standard connectors on every port
Passive no power, no setup, nothing to configure
Grows with the car add a gauge or module by plugging into a free port

Specifications

Connections
Ports	4
Connector	Deutsch DTM 4-pin (DTM04-4P)
Mating plug	Deutsch DTM06-4S
Port pitch	25 mm
Type	Passive, all ports wired in parallel
Electrical
Current rating	10 A
Mechanical
Dimensions	130 × 25 × 32.2 mm
Mounting	2 × Ø6.25 mm holes, 115 mm apart
Weight	45 g
Ordering
Kit contents	TBD
Warranty	2 years

Connections

Ports

Connector

Deutsch DTM 4-pin (DTM04-4P)

Mating plug

Deutsch DTM06-4S

Port pitch

25 mm

Type

Passive, all ports wired in parallel

Electrical

Current rating

10 A

Mechanical

Dimensions

130 × 25 × 32.2 mm

Mounting

2 × Ø6.25 mm holes, 115 mm apart

Weight

45 g

Ordering

Kit contents

TBD

Warranty

2 years

TBD Not published yet. These rows fill in from the datasheet before release.

**Outline, 1 × 4**Port side, side and end views. Millimetres. Not to scale on screen.

Connections
Ports	6
Connector	Deutsch DTM 4-pin (DTM04-4P)
Mating plug	Deutsch DTM06-4S
Port pitch	25 mm, rows 22 mm apart
Type	Passive, all ports wired in parallel
Electrical
Current rating	10 A
Mechanical
Dimensions	108 × 50 × 32.2 mm
Mounting	2 × Ø6.25 mm holes, 93 mm apart
Weight	70 g
Ordering
Kit contents	TBD
Warranty	2 years
